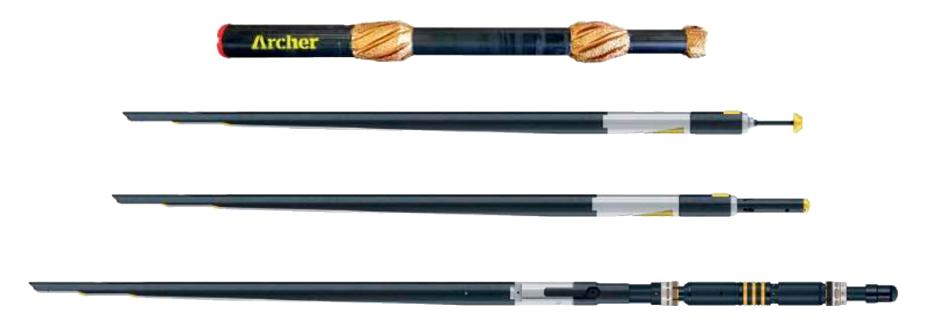

The X-it Retrievable Anchor is a mechanical weight set slip anchor design for full contact with tri-directional wickers. Anti-rotation and high axial load slip-design. Fulcrum Lug allows for low side exits.

The X-it Hydraulic Anchor is a hydraulic set (Mechanical with hydraulic actuation cylinder) Slip anchor design for full contact with tri-directional wickers. Anit-rotation and high axial load slip-design. Fully retrievable. The Retrievable Packer Anchor. Pressure containment to 7.500 psi. Fully retrievable with adjustable shear values.

Application
• Sidetracks
• Multilaterals
• Controlled casing exit

Features
• Fully retrievable; single-trip system
• Unique multiramp whipstock; carbide coated ramps
• Unique geometry combination mill; integrated pilot mill
• Quicktip applied Predator and Sharkstooth inserts improve strength and penetration
• Tri-directional anchor slips provide positive anchoring
• Fulcrum lug anchor forces whipstock against casing in all deviations
• 360 degree exit including low side
• Dual string and horizontal well exit capability
• Two-piece whipstock
• Multiple anchor mechanisms

Benefits
• Single-trip reliable, effective and efficient sidetracks
• Pilot bit precision delivers accurate, straight sidetrack with reduced dog-leg and tortuosity
• 360 degree and low side exits improve target accuracy and reduce drilling time
• Positive anchoring in high deviation eliminates hang-up risk on whipstock
• Confidence in system due to 300+ wells track record

  Download PDF Data Sheet

Single Trip Mill

Mechanical Set Retrievable Anchor

Hydraulic Set Retrievable Anchor

Hydraulic Set Retrievable Packer
